MPS Microsystems manufactures high-precision miniature linear bearings. We offer a comprehensive range of exceptionally smooth bearings with bore diameters from Ø 2 mm to Ø 6 mm.
The balls of these precision bearings meet ‘Grade 3’, the highest quality defined by the ISO 3290/DIN 5401 standard. Combined with a cage and a high precision casing, they allow rapid positioning while reducing friction and eliminating the stick-slip effect.
The standard version of MPS Microsystems linear bearings consists of a stainless steel bushing and balls, and a brass cage. An all-stainless steel version or one with ceramic balls can be made on request.

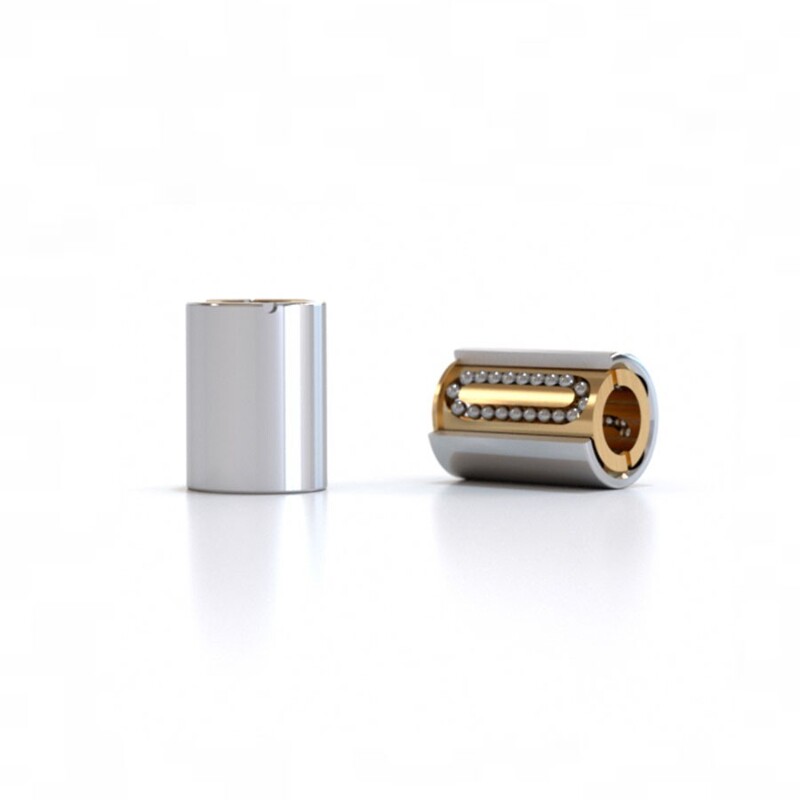

L 612X
$63.15
Miniature linear bearing with an interior diameter of 6 mm and designed for various applications
- Exceptional smoothness, very low friction
- Ideal for precise positioning to the nearest micron, no stick-slip effect
- Great rigidity, extended lifespan
Data sheet
- B (mm) : Width of bearing
- 18
- Dynamic load capactiy (N)
- 220
- Static load capactiy (N)
- 250
- D (mm) : Out. diam. of bearing
- 12
- d (mm) : In. diam. of bearing
- 6
Miniature linear bearing with an interior diameter of 6 mm and designed for various applications
- Exceptional smoothness, very low friction
- Ideal for precise positioning to the nearest micron, no stick-slip effect
- Great rigidity, extended lifespan
