MPS Microsystems offers a wide range of linear bearings that provide smooth movement. Another advantage of these guidance systems: their attractive price.
They are available in a range of diameters from Ø 3 mm to Ø 25 mm and are made of injected plastic segments (POM), as well as easy-to-clean stainless steel needles and balls. The needles have three roles: they hold the segments together, they serve as external tracks for the balls, and they define the diameter of the ball bushing.
The plastic segments of MPS Microsystems DBL series linear bearings enable their use in environments with high temperature fluctuations.

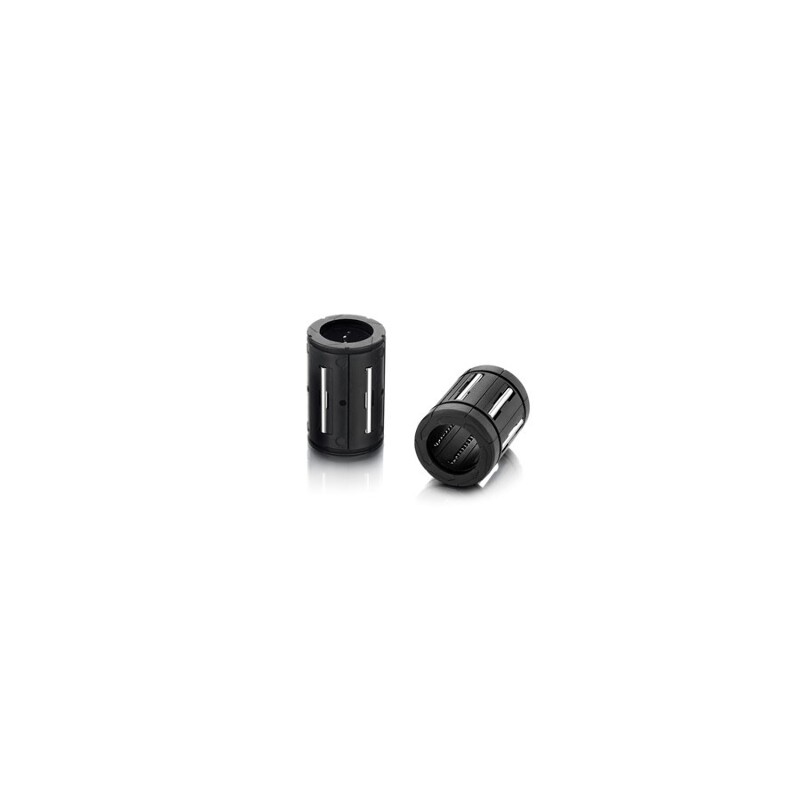

DBL 510X
$19.60
Miniature linear bearing with 5 mm inner diameter
- Injected plastic segments (POM)
- Stainless steel balls and needles
- Low friction across wide temperature range
- Low price
Data sheet
- B (mm) : Width of bearing
- 15
- Dynamic load capactiy (N)
- 72
- Static load capactiy (N)
- 84
- D (mm) : Out. diam. of bearing
- 10
- d (mm) : In. diam. of bearing
- 5
Miniature linear bearing with 5 mm inner diameter
- Injected plastic segments (POM)
- Stainless steel balls and needles
- Low friction across wide temperature range
- Low price
